Description

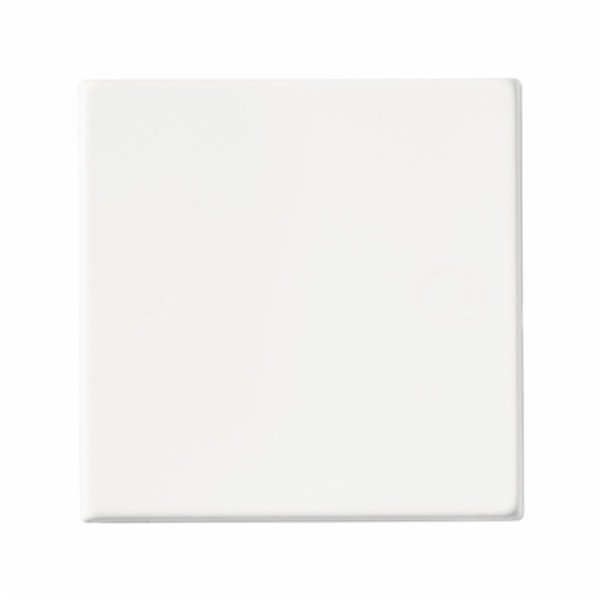

Hartland CFX Primed White Single Blank Plate
Single Blank Plate
£48.69
7XC
Additional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland CFX |
| Page-Sort-Order | 012-036-001 |
| Insert-Type | Single Blank Plate |
| Insert-Colour | N/A |
| Uf-ItmLabelTechInsert | BPS |
| Uf-HAM-Plate-Range | Hartland CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland CFX |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445 |
| Item-Long-Description | Hartland CFX Primed White Single Blank Plate |
| PlateFinish | Hartland CFX Primed White |
| EAN13-Barcode | 5.02E+12 |
| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | N/A |
| Additional-Notes | Plates must be Earthed via the Earth Tag. |
| Commodity-Code | 74192000 |
| Dimension-Image | TD-7CBPS.jpg |
| Luckins-TSI | 398331892 |
| Tech-Sheet-Page-Footer | 7WPCBPS – Hartland CFX Primed White Single Blank Plate |
| product-code | S HT-C PRW |
| family-code | S HART CFX |
| last-inv | 46055 |
| unit-weight | 168 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533325892 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 12 |
| HAM-SortOrder | 36 |
| InsertSortOrder | 1 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Primed White |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Plate |
| WEB-NumberofGangs | Single Plate |
| MainInsertColour | N |
| TrimColour | A |
| Last-Updated-At-Hamilton | 46055 |
| Current-Rating | n/a |
| Wiring-Image | WD-NONE.jpg |
| Item-Image | 7WPCBPS.jpg |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | Any Box |
| Plate-Finish | Primed White |
| Subheader2 | Hartland CFX Blank Plates |
| Weight | 168 GR |
| IP-Rating | IP2XB |
| description | Hart CFX Pr/Wht Single Blank Plate |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 5.0mm |
