Description

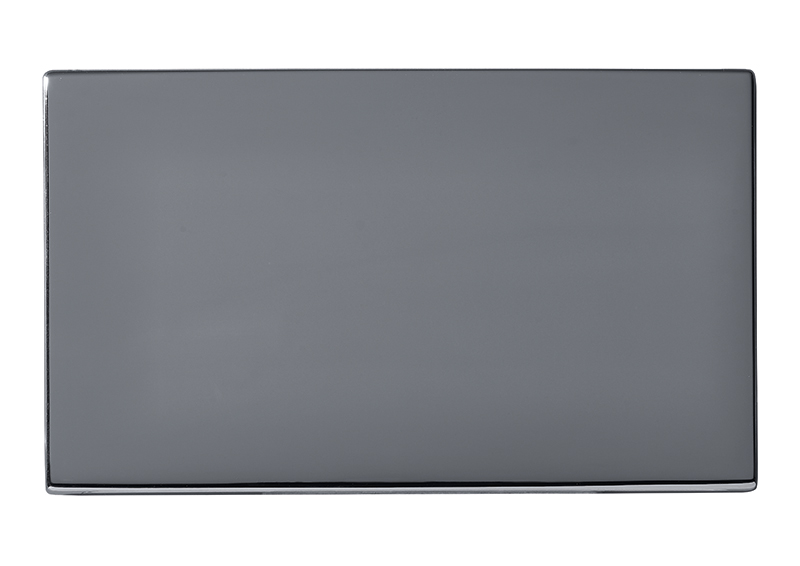

Hartland CFX Black Nickel Double Blank Plate
Double Blank Plate
£66.44
7XC
Additional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland CFX |
| Page-Sort-Order | 012-036-002 |
| Insert-Type | Double Blank Plate |
| Insert-Colour | N/A |
| Uf-ItmLabelTechInsert | BPD |
| Uf-HAM-Plate-Range | Hartland CFX |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Hartland CFX |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445 |
| Item-Long-Description | Hartland CFX Black Nickel Double Blank Plate |
| PlateFinish | Hartland CFX Black Nickel |
| EAN13-Barcode | 5.02E+12 |

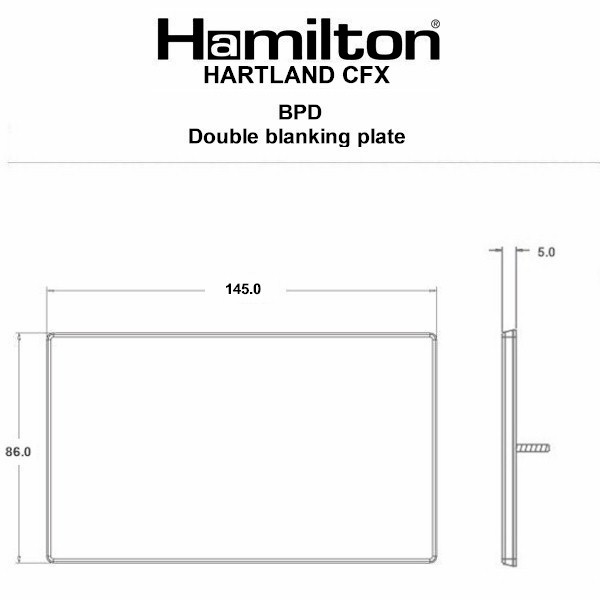

| Dimensions(Nominal) | Double: Height = 86.0mm Width = 145.0mm Depth = 5.0mm |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | N/A |
| Additional-Notes | Plates must be Earthed via the Earth Tag. |
| Commodity-Code | 74192000 |
| Item-Image | 78CBPD.jpg |
| Dimension-Image | TD-7CBPD.jpg |
| Luckins-TSI | 388240676 |
| Tech-Sheet-Page-Footer | 78CBPD – Hartland CFX Black Nickel Double Blank Plate |
| product-code | S HT-C BK |
| family-code | S HART CFX |
| last-inv | 45854 |
| unit-weight | 244 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533163724 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 12 |
| HAM-SortOrder | 36 |
| InsertSortOrder | 2 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Black Nickel |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Plate |
| WEB-NumberofGangs | Double Plate |
| MainInsertColour | N |
| TrimColour | A |
| Last-Updated-At-Hamilton | 46022 |
| Current-Rating | n/a |
| Wiring-Image | WD-NONE.jpg |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | Any Box |
| Plate-Finish | Black Nickel |
| Subheader2 | Hartland CFX Blank Plates |
| Weight | 244 GR |
| IP-Rating | IP2XB |
| description | Hart CFX BK Double Blank Plate |
| Height | 86.0mm |
| Width | 145.0mm |
| Depth | 5.0mm |
