Description
Sheer CFX Satin Brass 4 gang 20AX 2 Way Toggle Satin Brass
4 gang 20AX 2 Way FL Dolly
£276.63
8XC
Additional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Sheer CFX |
| Page-Sort-Order | 017-016-004 |
| Insert-Type | 4 gang 20AX 2 Way FL Dolly |
| Insert-Colour | Satin Brass |
| Uf-ItmLabelTechInsert | T24-FLDLY |
| Uf-HAM-Plate-Range | Sheer CFX |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006. |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755 |
| Item-Long-Description | Sheer CFX Satin Brass 4 gang 20AX 2 Way Toggle Satin Brass |
| PlateFinish | Sheer CFX Satin Brass |
| EAN13-Barcode | 5.02E+12 |
| Dimensions(Nominal) | Double: Height = 86.0mm Width = 145.0mm Depth = 1.5mm plate + 3.0mm gasket |
| Current-Rating | 20AX |
| Commodity-Code | 85365080 |

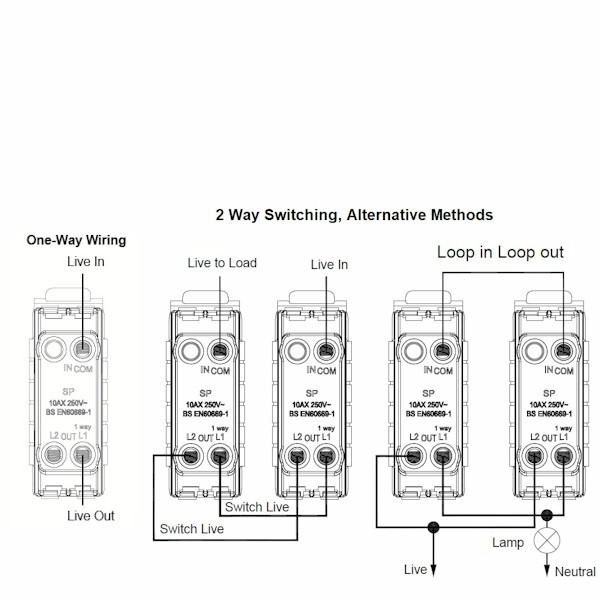

| Wiring-Image | WD2Wv2.jpg |

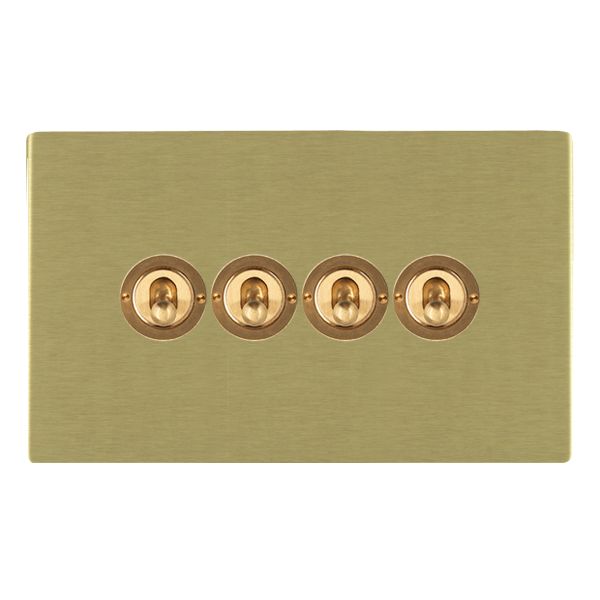

| Item-Image | 82CT24.jpg |

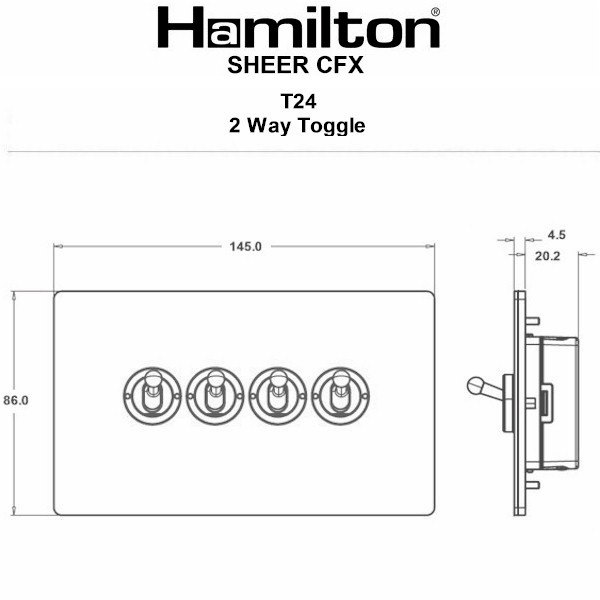

| Dimension-Image | TD-8CT24.jpg |
| Luckins-TSI | 387371119 |
| Tech-Sheet-Page-Footer | 82CT24 – Sheer CFX Satin Brass 4 gang 20AX 2 Way Toggle Satin Brass |
| product-code | S SH-C SB |
| family-code | S SHR CFX |
| last-inv | 45881 |
| unit-weight | 380 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533138089 |
| Uf-HAMInnerBoxQty | 3 |
| Uf-OuterBoxQty | 30 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 17 |
| HAM-SortOrder | 16 |
| InsertSortOrder | 4 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Satin Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | 2 Way |
| WEB-NumberofGangs | 4 |
| MainInsertColour | Satin Brass |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 46056 |
| Module-Size-Height | 53mm |
| Module-Size-Depth | 23mm |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Satin Brass |
| Subheader2 | Sheer CFX Dollies |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/uzsv/#p=1 |
| Weight | 380 GR |
| description | Sher CFX SB 4g 20AX 2Way Toggle SB |
| Height | 86.0mm |
| Width | 145.0mm |
| Depth | 1.5mm plate + 3.0mm gasket |
