Description

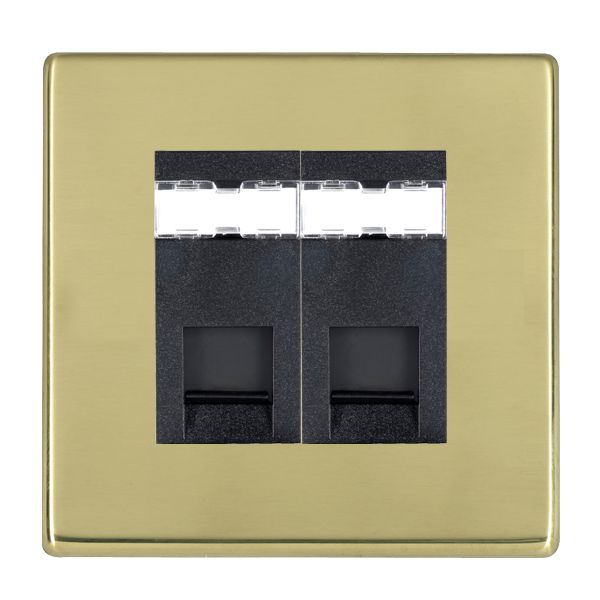

Hartland CFX Polished Brass 2 gang RJ45 CAT 5E Outlet – Unshielded Black
2 gang RJ45 CAT 5E Outlet – Unshielded
£112.22
7XC
Additional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland CFX |
| Page-Sort-Order | 012-033-002 |
| Insert-Type | 2 gang RJ45 CAT 5E Outlet – Unshielded |
| Insert-Colour | Black |
| Uf-ItmLabelTechInsert | 2J45 |
| Uf-HAM-Plate-Range | Hartland CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland CFX |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445 |
| Item-Long-Description | Hartland CFX Polished Brass 2 gang RJ45 CAT 5E Outlet – Unshielded Black |
| PlateFinish | Hartland CFX Polished Brass |
| EAN13-Barcode | 5.02E+12 |

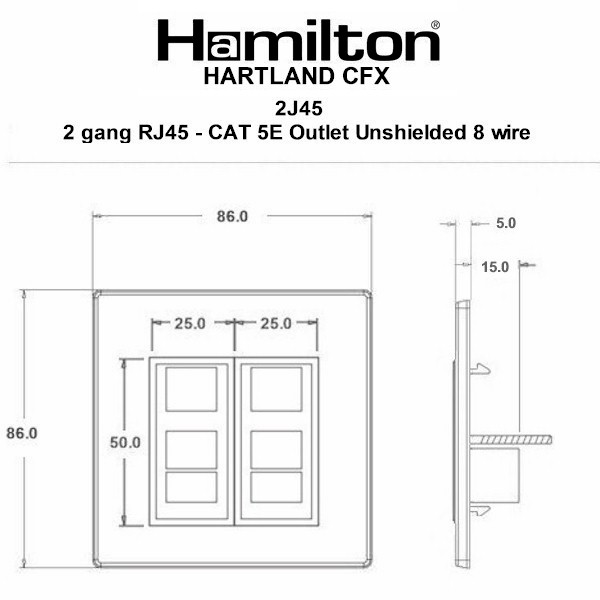

| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 1 x 4mm2 Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed (ref BS7671 415.2.1) |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | N/A |

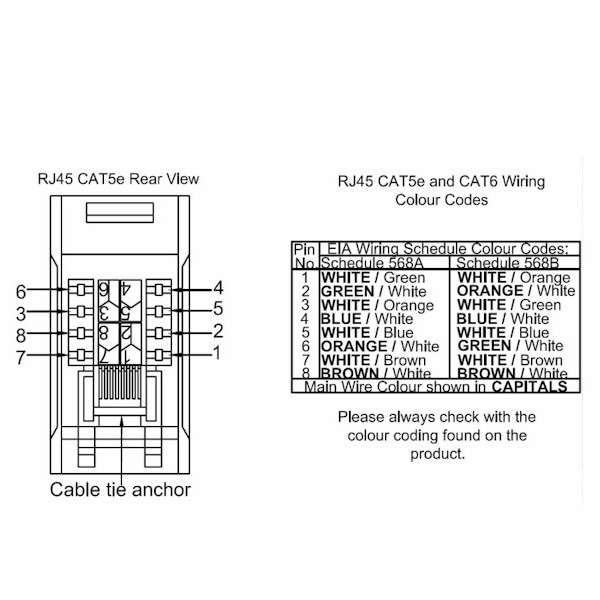

| EuroFix-Additional-Notes | Can be used in both EIA 568A and EIA 568B wiring schedules |
| Commodity-Code | 85176990 |
| Wiring-Image | WDRJ45.jpg |
| Item-Image | 71C2J45B.jpg |
| Dimension-Image | TD-7C2J45.jpg |
| Luckins-TSI | 388235872 |
| Tech-Sheet-Page-Footer | 71C2J45B – Hartland CFX Polished Brass 2 gang RJ45 CAT 5E Outlet – Unshielded Black |
| product-code | S HT-C PB |
| family-code | S HART CFX |
| last-inv | 43509 |
| unit-weight | 110 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533158933 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 12 |
| HAM-SortOrder | 33 |
| InsertSortOrder | 2 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Polished Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | RJ45 CAT 5E – Unshielded |
| WEB-NumberofGangs | 2 |
| MainInsertColour | Black |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 46066 |
| Current-Rating | n/a |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Weight | 110 GR |
| IP-Rating | IP2XD |
| description | Hart CFX PB 2g RJ45 CAT5E Unshielded BL |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 5.0mm |
| Plate-Finish | Polished Brass |
| Subheader2 | Hartland CFX Television / Data |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bfyq/#p=1 |
