Description

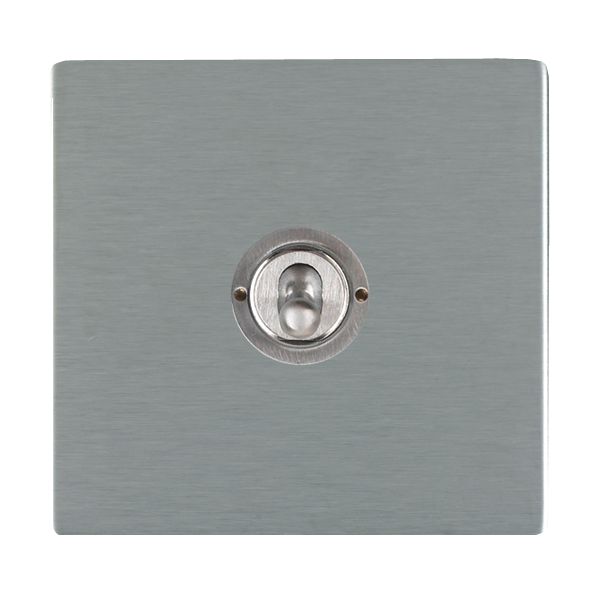

Sheer CFX Satin Steel 1 gang 20AX Intermediate Toggle Satin Steel
1 gang 20AX Intermediate FL Dolly
£107.16
8XC
Additional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Sheer CFX |
| Page-Sort-Order | 017-016-001 |
| Insert-Type | 1 gang 20AX Intermediate FL Dolly |
| Insert-Colour | Satin Steel |
| Uf-ItmLabelTechInsert | T31-FLDLY |
| Uf-HAM-Plate-Range | Sheer CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Sheer CFX – Designed to fit Folded Metal Wall Box Enclosures that comply with BS4662-2006. |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Trade Mark No. 2296586 Sheer CFX is a Registered Design under Reference Nos. R21 = 3020754 SS2 =3020755 |
| Item-Long-Description | Sheer CFX Satin Steel 1 gang 20AX Intermediate Toggle Satin Steel |
| PlateFinish | Sheer CFX Satin Steel |
| EAN13-Barcode | 5.02E+12 |

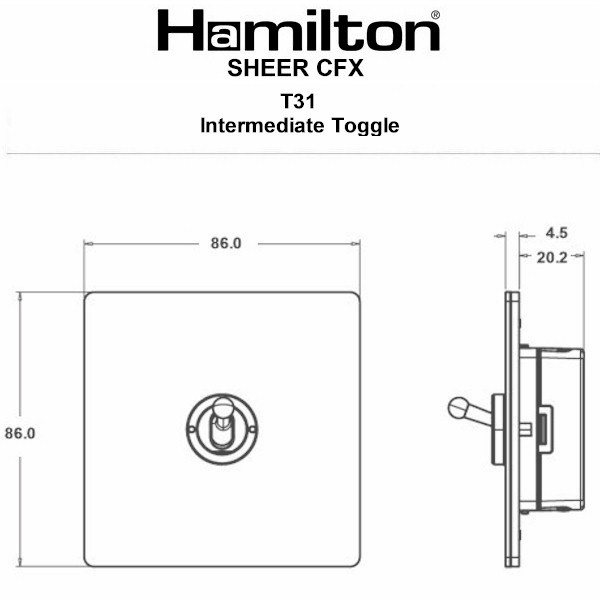

| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 1.5mm plate + 3.0mm gasket |
| Current-Rating | 20AX |
| Commodity-Code | 85365080 |

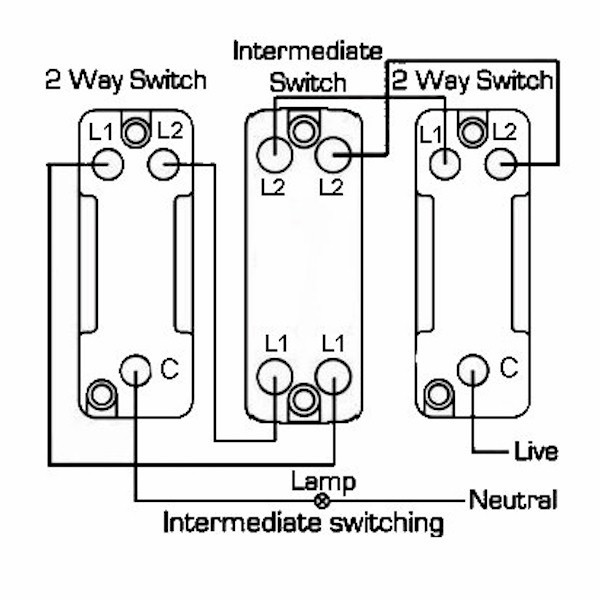

| Wiring-Image | WDINT.jpg |
| Item-Image | 84CT31.jpg |
| Dimension-Image | TD-8CT31.jpg |
| Luckins-TSI | 387375995 |
| Tech-Sheet-Page-Footer | 84CT31 – Sheer CFX Satin Steel 1 gang 20AX Intermediate Toggle Satin Steel |
| product-code | S SH-C SS |
| family-code | S SHR CFX |
| last-inv | 45669 |
| unit-weight | 181 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533140556 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 17 |
| HAM-SortOrder | 16 |
| InsertSortOrder | 1 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Satin Steel |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Intermediate |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Satin Steel |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 46056 |
| Module-Size-Height | 53mm |
| Module-Size-Width | 25mm |
| Module-Size-Depth | 23mm |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Satin Steel |
| Subheader2 | Sheer CFX Dollies |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bfnc/#p=1 |
| Weight | 181 GR |
| description | Sher CFX SS 1g 20AX Inter Tog SS |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 1.5mm plate + 3.0mm gasket |
