Description
Hartland CFX Polished Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Bright Chrome/White
1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1×2.1A
£99.67
7XC
Additional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland CFX |
| Page-Sort-Order | 012-022-001 |
| Insert-Type | 1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1×2.1A |
| Insert-Colour | Bright Chrome/White |
| Uf-ItmLabelTechInsert | SS1USBX1 |
| Uf-HAM-Plate-Range | Hartland CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland CFX |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445 |
| Item-Long-Description | Hartland CFX Polished Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Bright Chrome/White |
| PlateFinish | Hartland CFX Polished Nickel |
| EAN13-Barcode | 5.02E+12 |
| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm |
| Switched-Poles | Single |
| Current-Rating | 13 Amp, USB 1 x 2.1A |
| Maximum-Load | 13 Amp, USB = 2.1A |
| Mains-Frequency | 50/60Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 3×2.5mm² |
| Terminal-Capacity-2 | 3x4mm² |
| Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Earth-Terminal-Capacity-1 | 3×2.5mm² |
| Earth-Terminal-Capacity-2 | 3x4mm² |
| Earth-Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -15°C to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS1363 BS EN 62368 |
| Commodity-Code | 85366990 |

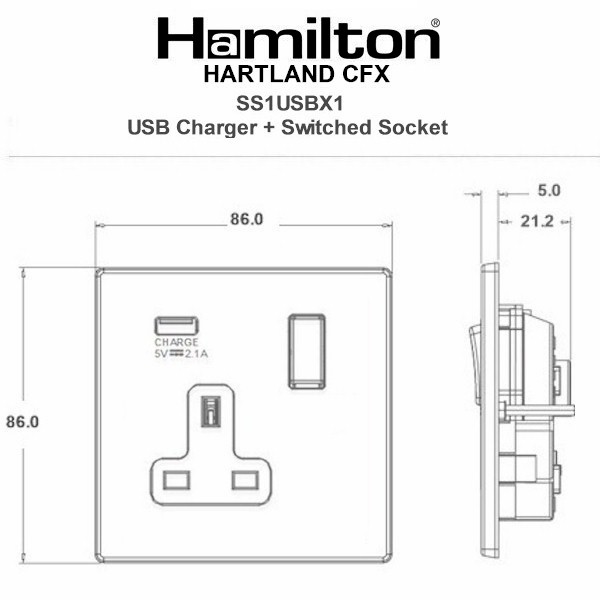

| Dimension-Image | TD-7CSS1USBX1.jpg |
| Luckins-TSI | 404388153 |
| Tech-Sheet-Page-Footer | 7PNCSS1USBBC-W – Hartland CFX Polished Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Bright Chrome/White |
| product-code | S HT-C PN |
| family-code | S HART CFX |
| last-inv | 43511 |
| unit-weight | 0 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533391884 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 12 |
| HAM-SortOrder | 22 |
| InsertSortOrder | 1 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Polished Nickel |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Single Pole |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Bright Chrome |
| TrimColour | White |
| Last-Updated-At-Hamilton | 45789 |

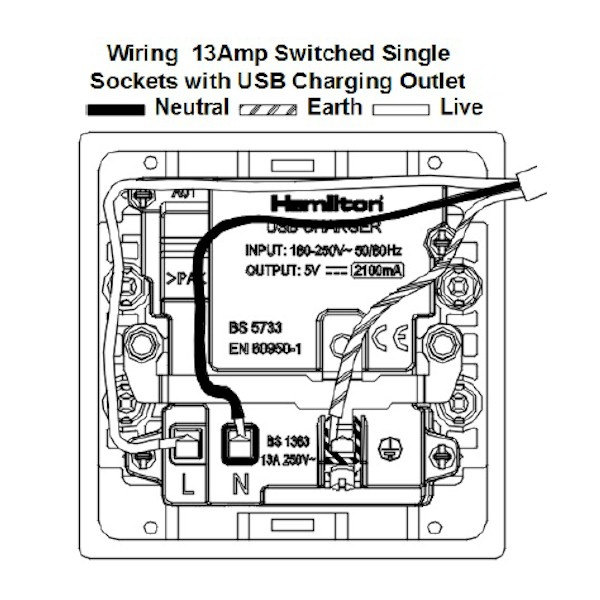

| Wiring-Image | WDSS1USB.jpg |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Voltage | 180/250V AC, USB = 5V |
| IP-Rating | IP2XD |
| description | Hart CFX PN SP SS1 + USBx1 BC/WH |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 5.0mm |
| Plate-Finish | Polished Nickel |
| Subheader2 | Hartland CFX USB Power Sockets |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/dcop/#p=1 |
